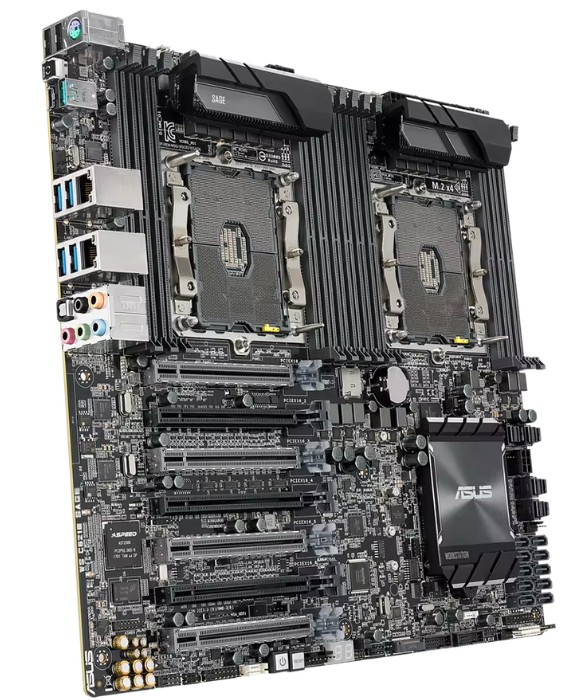

Designed for Dual LGA3647 socket Intel Xeon Scalable Processors with 4x U.2, M.2, USB 3.1 Gen2, Dual Intel Gigabit LAN, support for 12 DIMMs of ECC DDR4, Intel VROC and Intel Optane Memory compatibility.
Chipset:
Build in Intel C621.
Memory:
12 x DIMM, Max. 1536GB, DDR4 2933/2666/2400 MHz RDIMM, LR-DIMM Memory Please refer to ASUS AVL for the latest update Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
Graphics:
VGA Port (Optional) – Supports VGA with max. resolution 1920 x 1200 @ 60Hz, A Speed AST2500 with 64MB VRAM, Integrated Graphics Processor.
Multi GPU Support:
Supports NVIDIA 4-Way SLI Technology Supports AMD 4-Way CrossFireX Technology.
Expansions Slot:
3 x PCIe 3.0 x16 (x16 mode),2 x PCIe 3.0 x16 (x8 mode),2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8)
Storage:
4 x U.2 Connector 1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode) Intel C621 Chipset: AS Media SATA 6Gb/s Controller: 2 x SATA 6Gb/s Port 8 x SATA 6Gb/s Port (Support Raid 0, 1, 5, 10.
Lan:
Intel I210-AT, 2 x Gigabit LAN Controller
Audio:
Realtek S1220A7.1-Channel High Definition Audio CODEC High Quality SNR stereo playback output and 113dBSNR recording input(Line-in), DTS Connect, DTS Headphone: X, Power pre-regulator reduces power input noise to ensure consistent performance,- Impedance sense for front and rear headphone outputs,- Supports: Jack-detection, Multi-streaming, Front Panel Jack, Front panel audio connector (AAFP), Supports up to 32-Bit/192kHz Playback.
USB Port:
2 x USB Port (2 at back panel, Type-A + USB Type-CTM), 8 x USB 3.1 Gen 1 Port (4 at back panel, 4 at mid-board), AS Media USB 3.1 Gen 2 Controller: Intel C621
