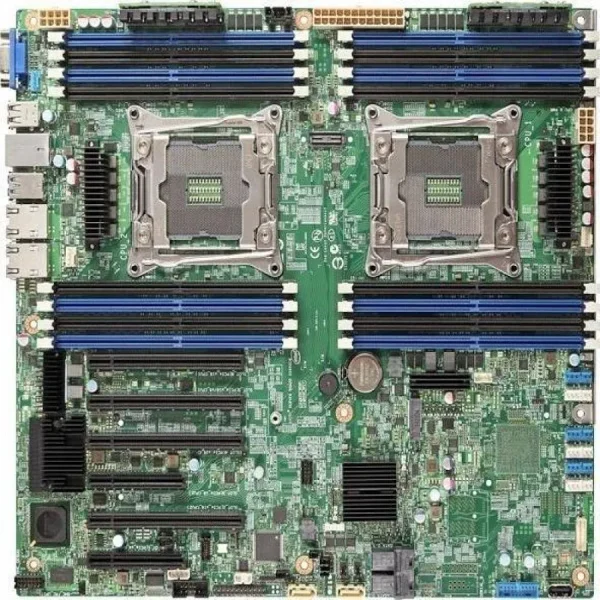

Intel S2600CW2 Xeon

Intel® Xeon® processor E5-2600 v3 product family
Socket: Socket R3
Integrated Systems Available: No
Integrated BMC with IPMI: IPMI 2.0 with OEM extensions
Rack-Friendly Board: Yes
Embedded Options Available: No
TDP: 145 W
Board Chipset: Intel® C612 Chipset (Intel® DH82029 PCH)
Max Memory Size (dependent on memory type): 1024 GB
Memory Types: DDR4 ECC RDIMM 1600/1866/2133, DDR4 ECC LRDIMM 1600/1866/2133
Memory Channels: 8
Max Memory Bandwidth: 136 GB/s
Physical Address Extensions: 46-bit
Toatl DIMMs: 16
ECC Memory Supported: Yes
Integrated Graphics: Yes
Graphics Output: VGA
Discrete Graphics: Supported
PCI Express Revision: 3.0
Max PCI Express Lanes: 84
PCIe x8 Gen 3: 1
PCIe x16 Gen 3: 4
PCIe x4 Gen 2.x: 1
USB Revision: 2.0 & 3.0
Toatl USB Ports: 7
Total SATA Ports: 10
RAID Configuration: PCH SATA 6G, ESRT2 RAID 0,1,10
Total Serial Ports: 1
Total LAN Ports: 2
Integrated LAN: 2x 1-GbE
Firewire: No
Embedded USB (eUSB) Solid State Drive Option: Yes
Integrated SAS Ports: 0
Integrated InfiniBand*: No
Max CPU Configuration: 2
